SURGICAL ROBOTICS:
The TITAN SPORT™ System
Contributing Human Centered Designer
The TITAN SPORT™ Surgical Robot is a minimally invasive system that uses a single port of entry to perform a multitude of surgeries. The system is designed to be nimble, light and small enough to move between operating rooms. The portability of this system allows surgical teams to operate within their current infrastructure.
Our team was able to help our client reach critical milestones, including gathering user-needs research, achieving technical feasibility, and performing live-tissue testing in just 15 months.
Learn.

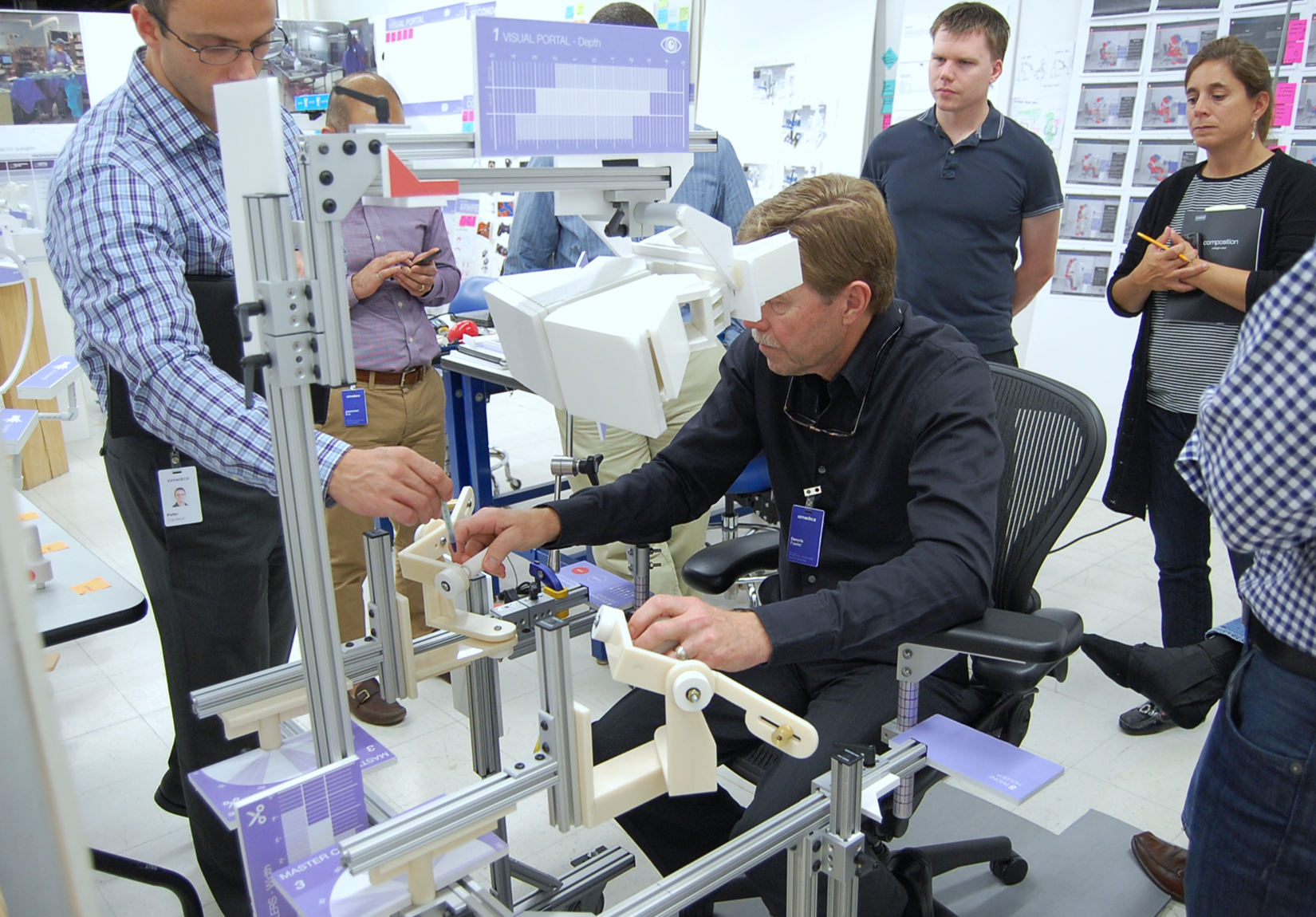

Working with interdisciplinary teams to develop 1:1 scale prototypes used by Key Opinion Leaders that provide information to the team on human factors and usability considerations. This information also provides internal architecture organization.
Build.

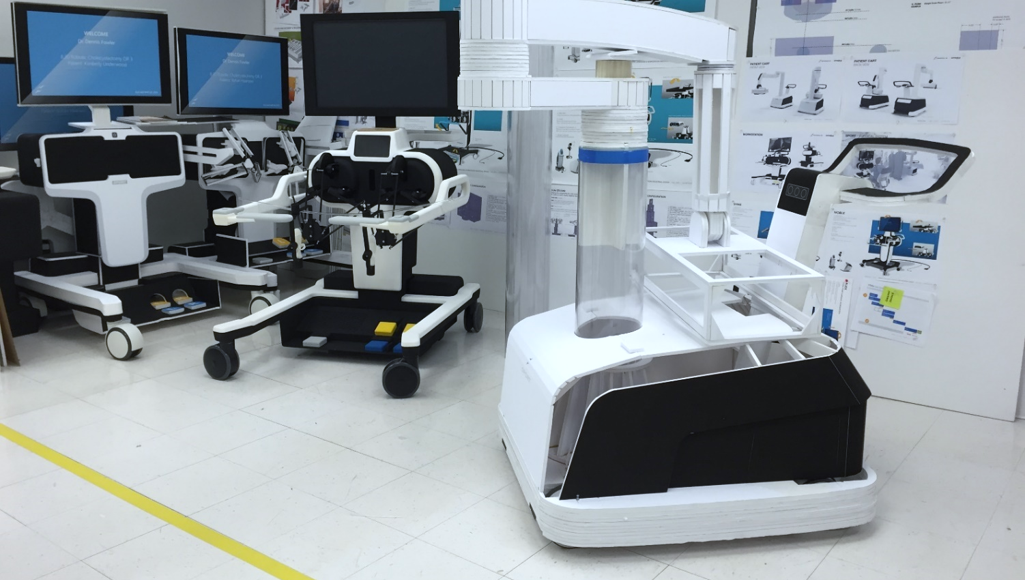

Utilize learnings to develop forms that facilitate transport, surgical use, clean-ability, and maintenance without sacrificing brand identity. We focused on building the models due to scale, as well as the ability to understand usability in ways 2D development wouldn’t be able to tell us (visualization, footprint, reach, touchpoint location, etc.).
Obsess.

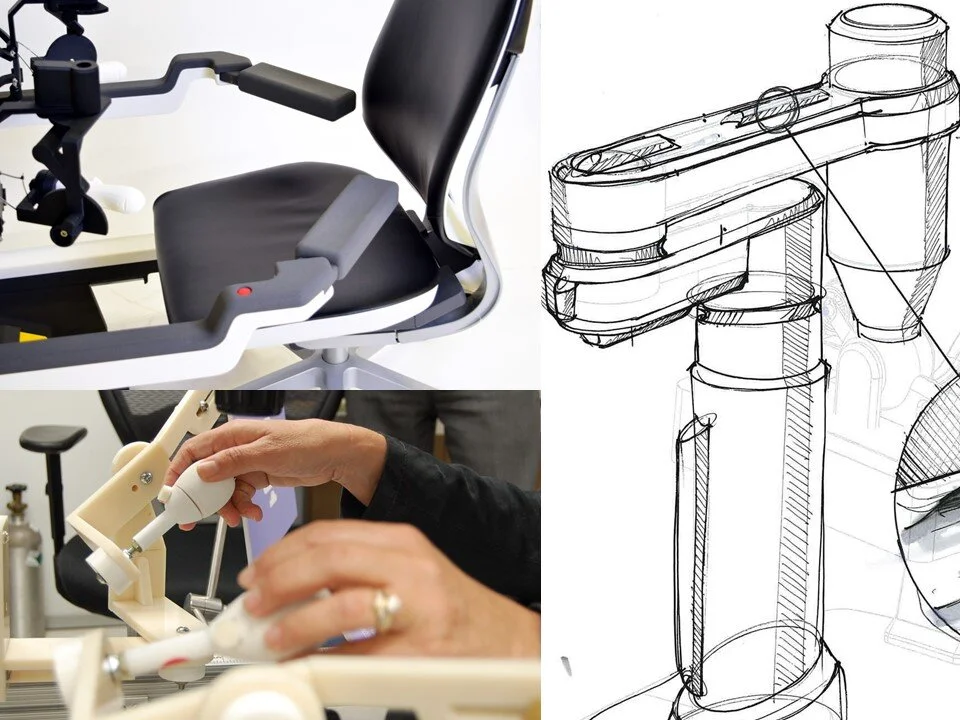

During system development, we focused on the ability to locate and maneuver touchpoints in low light environments without having to look at them. We also created adjustments to accommodate the wide range of surgeon shapes and sizes to ensure comfort during use.

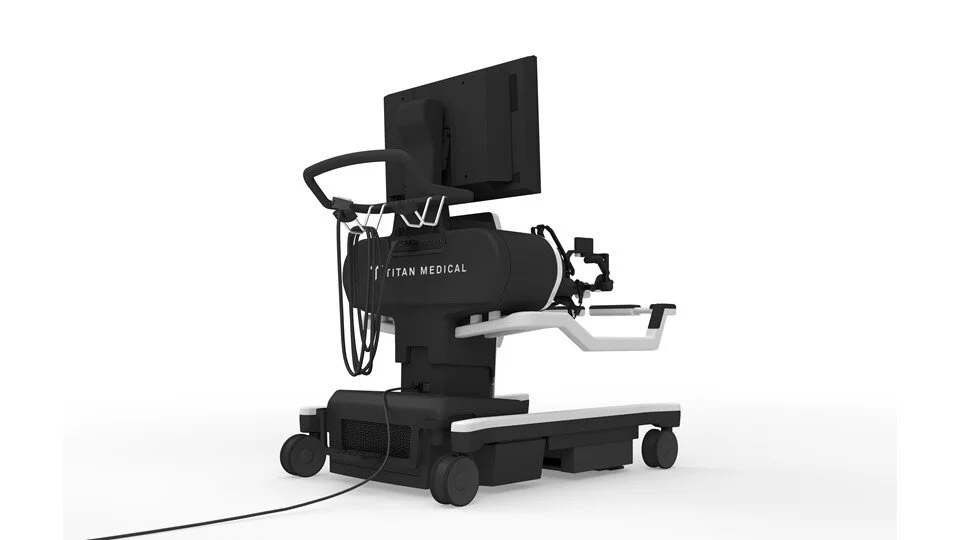

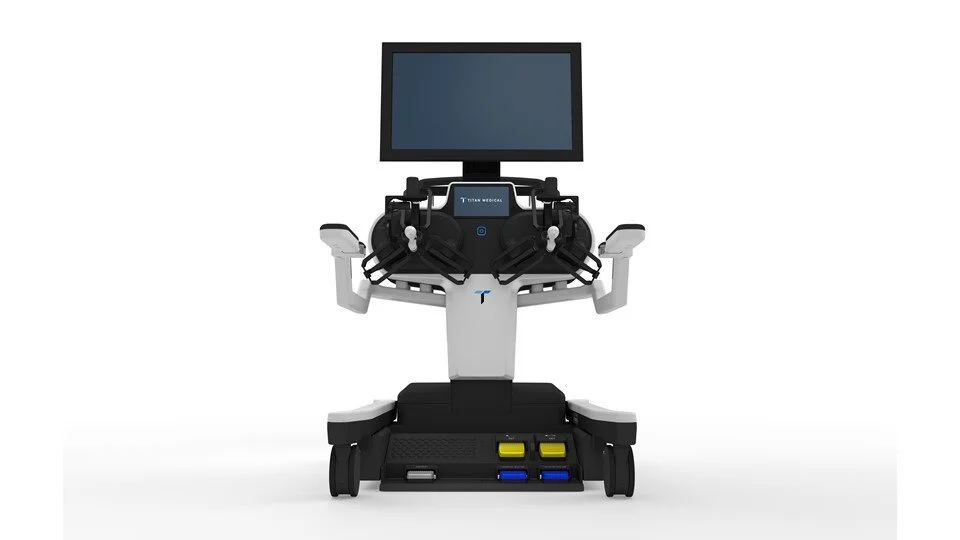

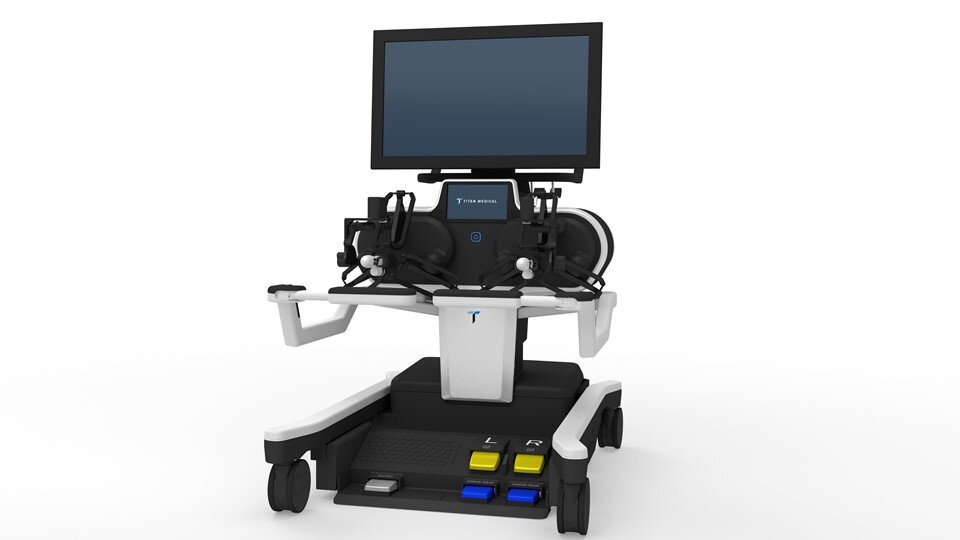

Surgeon Workstation
Everything within reach.
Intuitive organization and touchpoints.
Telescoping accommodates use and transport.
Dual Screen portrays different information.

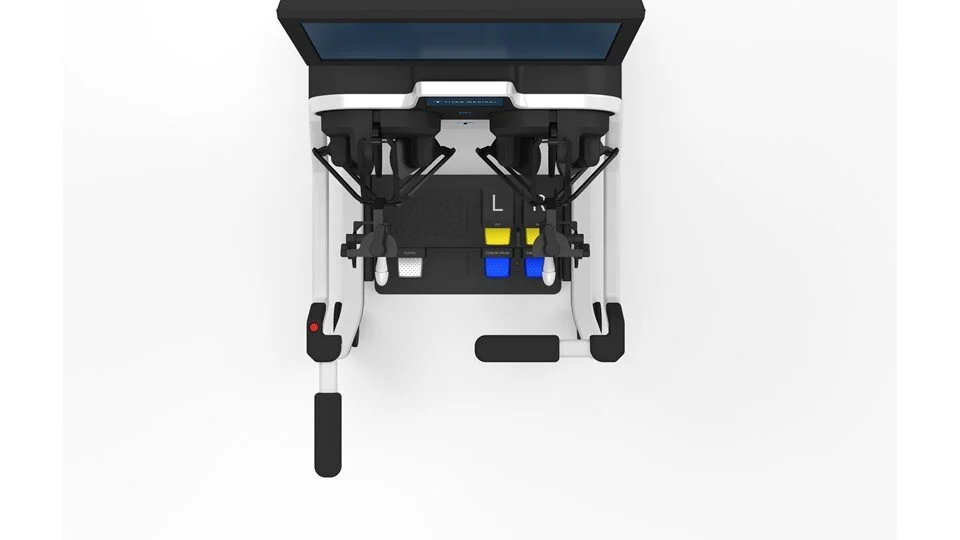

Articulating elbow rests and familiar pedal arrangement that translates forward and backward.

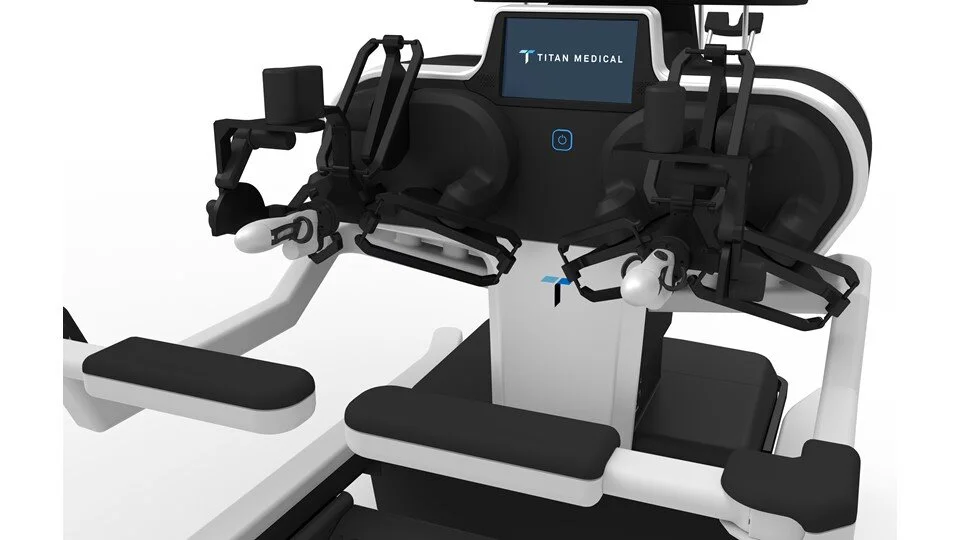

Ergonomic handle controllers for long term comfort

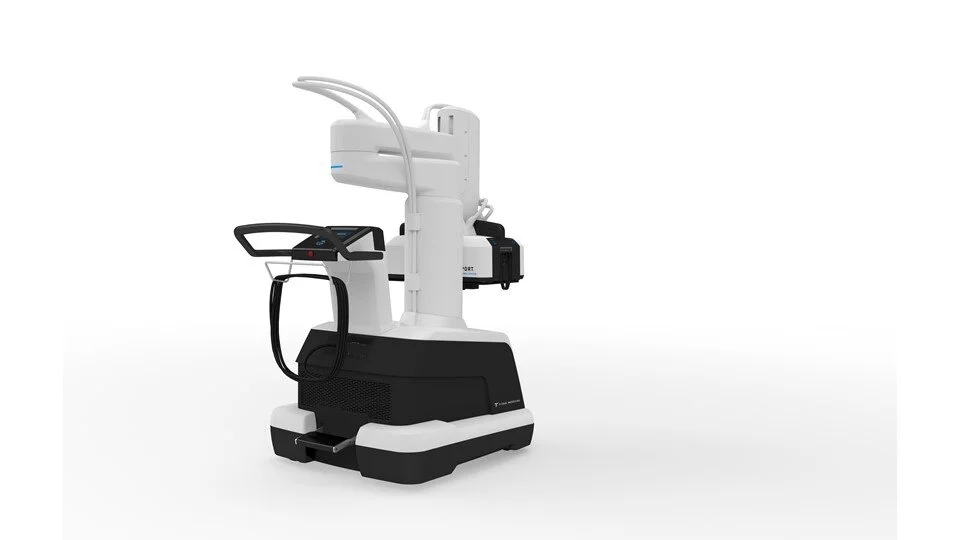

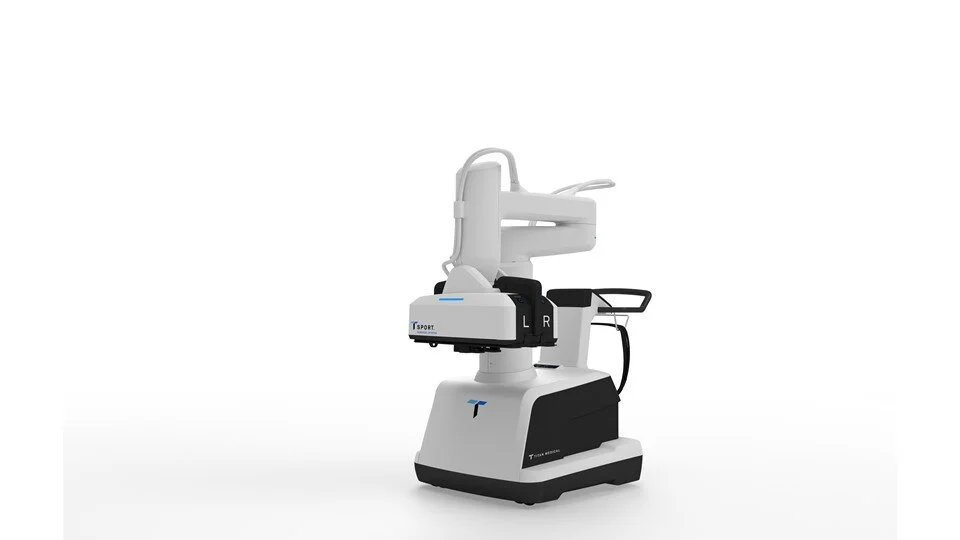

Patient Cart

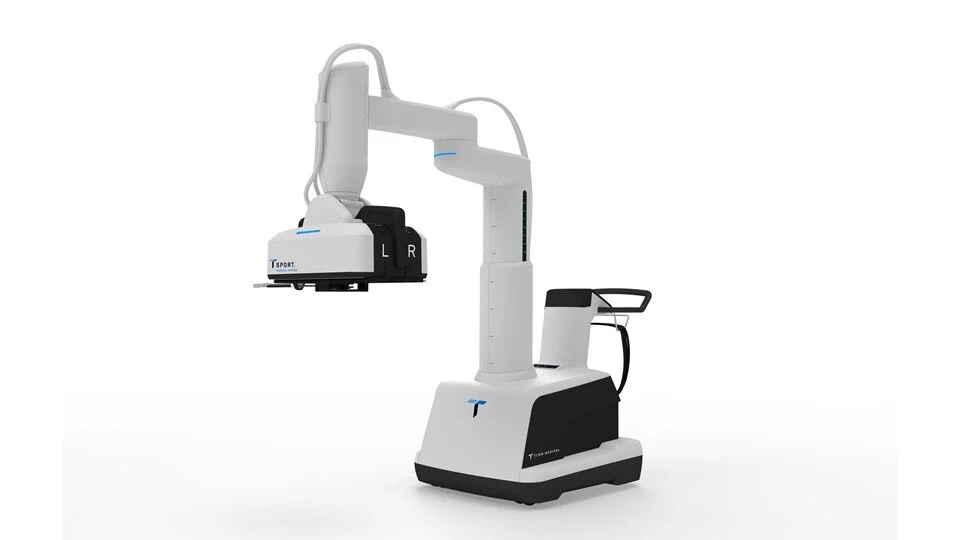

Articulating and telescoping arm provides flexibility for different surgeries

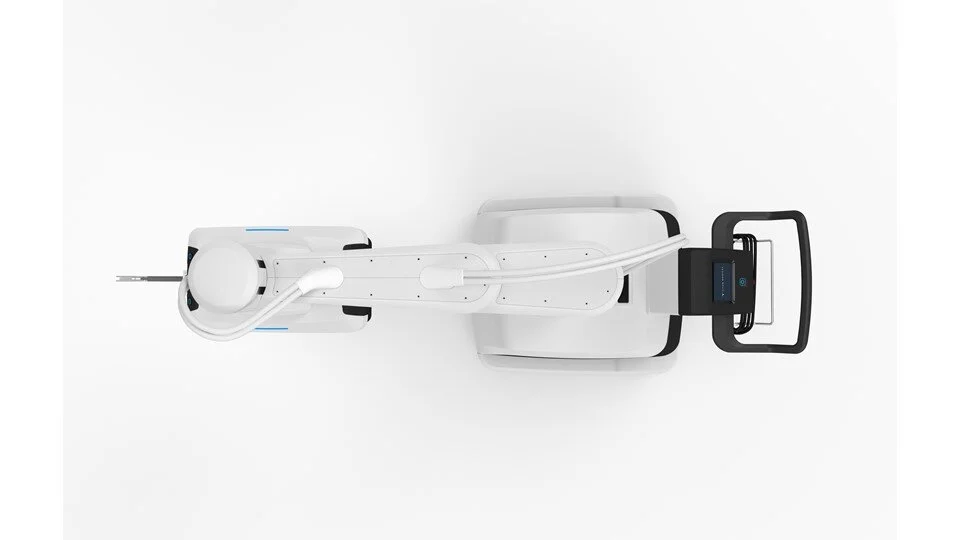

Transport mode allows user to visualize path and reduce center of gravity
Intuitive organization and touchpoints

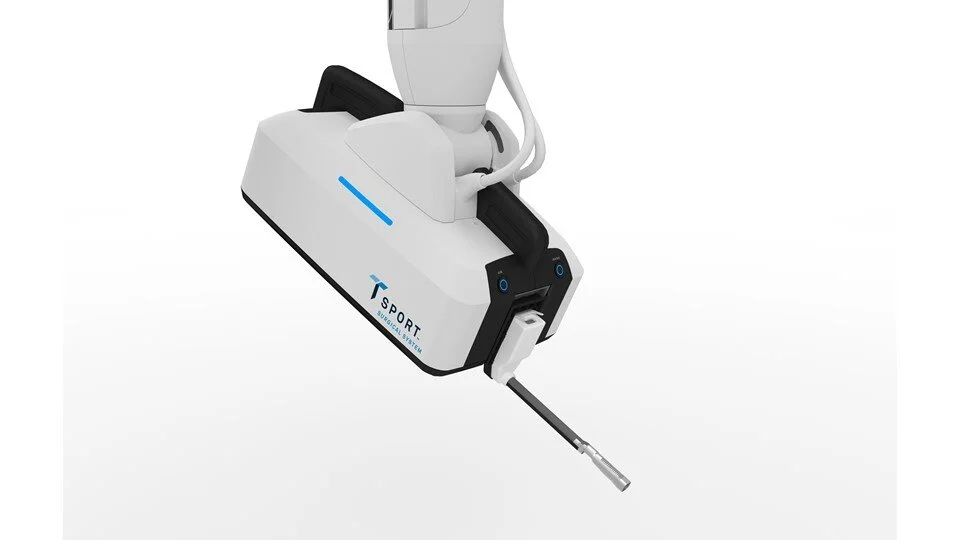

maneuverable Central Unit with bottom-side instrument load
Clear interfaces and touchpoints
Elegance in simplicity

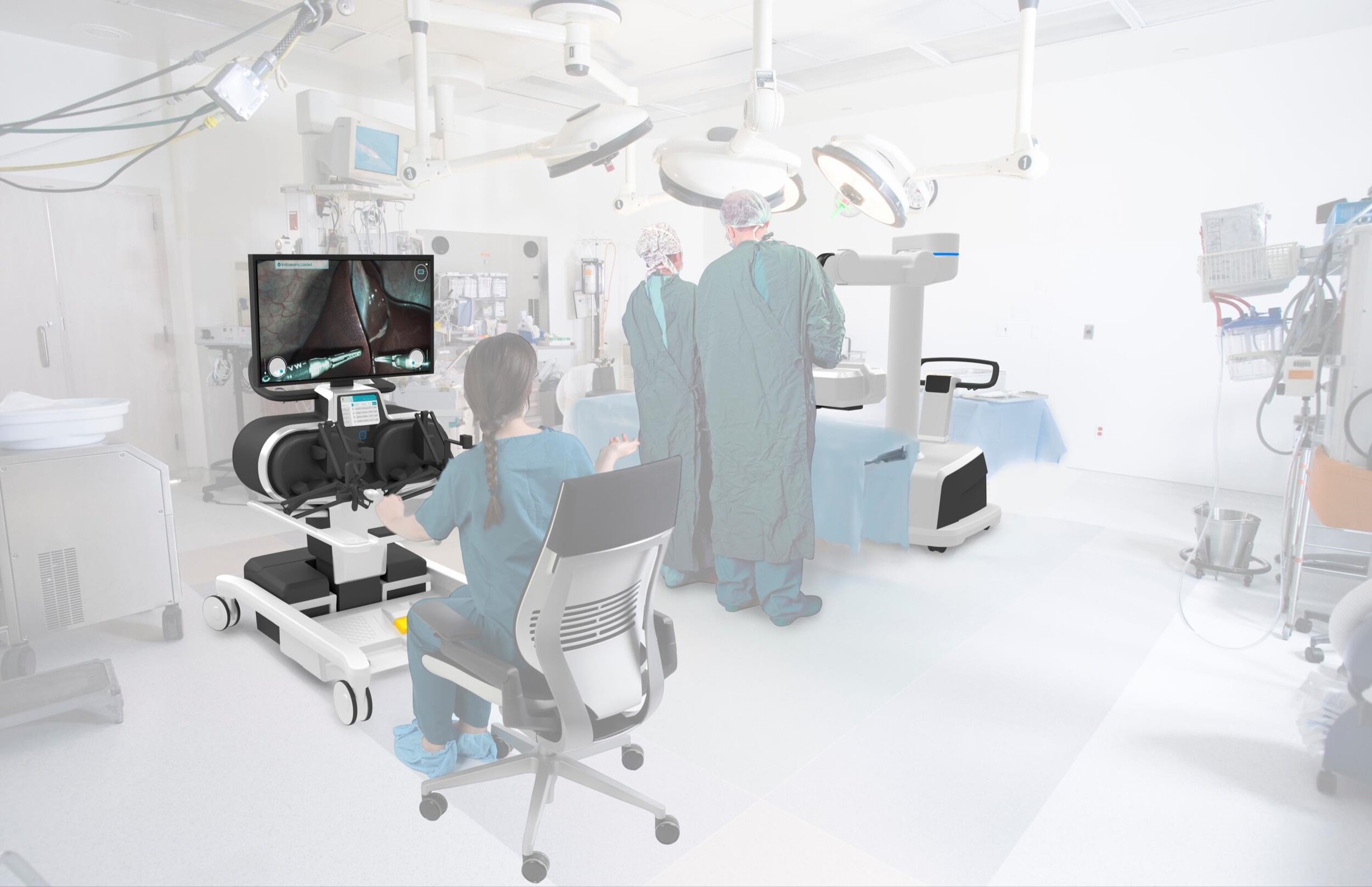

Bringing control and collaboration to the O.R.
Pushing innovation forward.
The project has been moved in-house to Titan Medical and the continuation can be found at https://titanmedicalinc.com/
